AssemState: Manual and Physical-State-Guided Reasoning for Zero-shot Furniture Assembly

Zhiyuan Qi; Jierui Li; Yifan Shen; Cheng Qian; Jiateng Liu

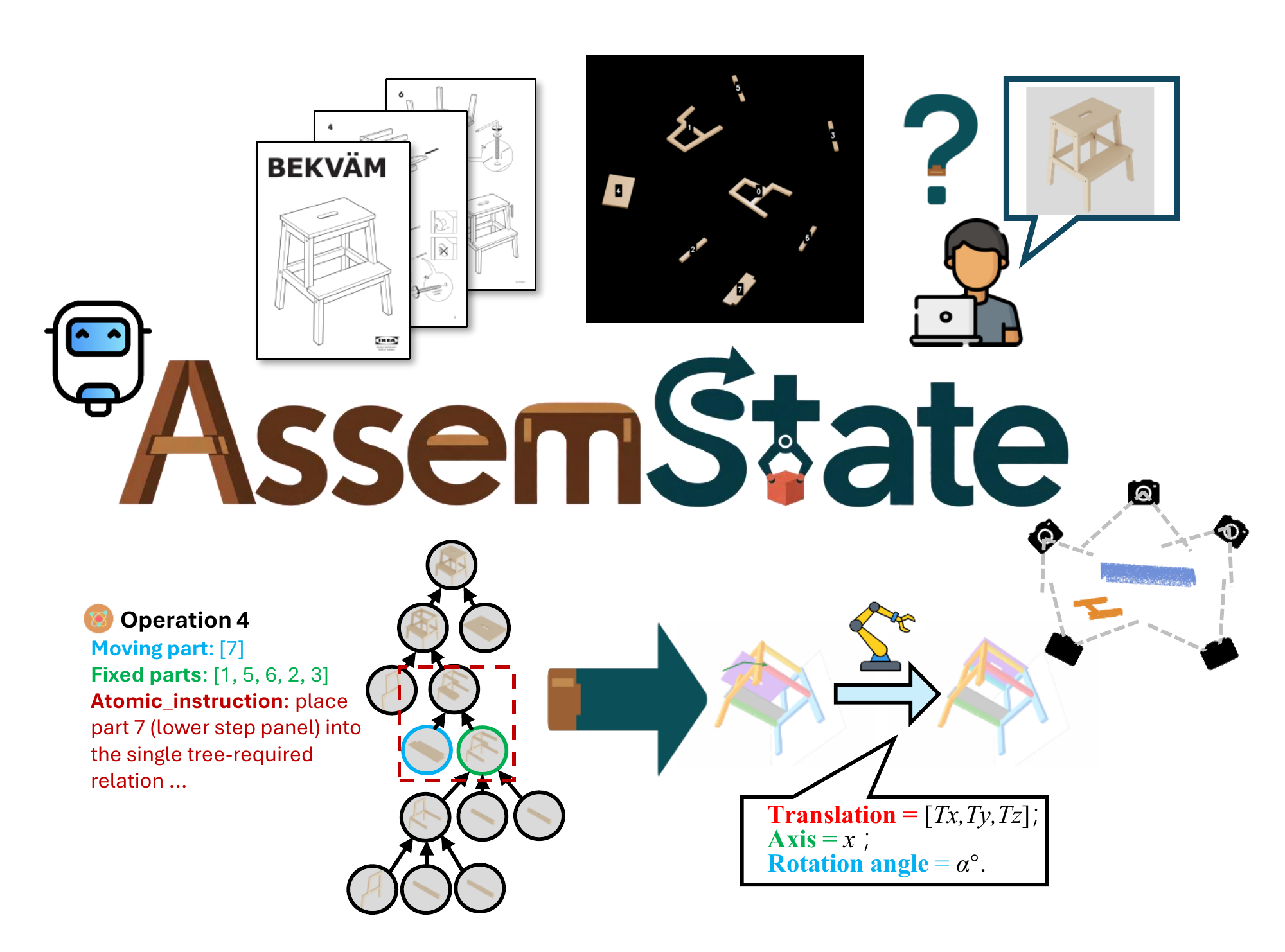

AssemState overview: a furniture manual and numbered parts connect assembly structure to a current moving-part pose update. — AssemState connects diagrammatic manuals, assembly structure, and rendered physical state to study zero-shot furniture assembly.

Read the manual. Recover the structure.
Refine the next placement with after-state feedback.

Abstract

Multimodal large language models have made significant progress in visual understanding, but precise 3D spatial reasoning in a physical environment remains difficult. Furniture assembly requires recovering operations from diagrammatic manuals and translating semantic attachment relations into 6D pose updates. We introduce AssemState, a zero-shot framework that combines anchor-guided assembly-structure recovery with iterative after-state feedback for pose refinement.

Under the supplied numbered-step-mask protocol, AssemState improves reported assembly-tree F1 from 38.58% to 62.80% and Tree Exact Match from 28.24% to 53.92%. On 243 independently evaluated operations, three-round refinement improves GPT judge acceptance from 0.0% to 5.3% and reduces mean Chamfer distance from 5.4111 to 1.7744. Strict pose accuracy remains zero: collision, floating, mirror orientation, incomplete seating, and wrong-side attachment persist. The results reveal improvements in structure recovery and selected local pose diagnostics, together with continuing limitations in contact-level spatial reasoning.

From Manuals to Assembly Structure

Ground numbered parts, identify boundary anchors, and track how subassemblies are carried across the manual.

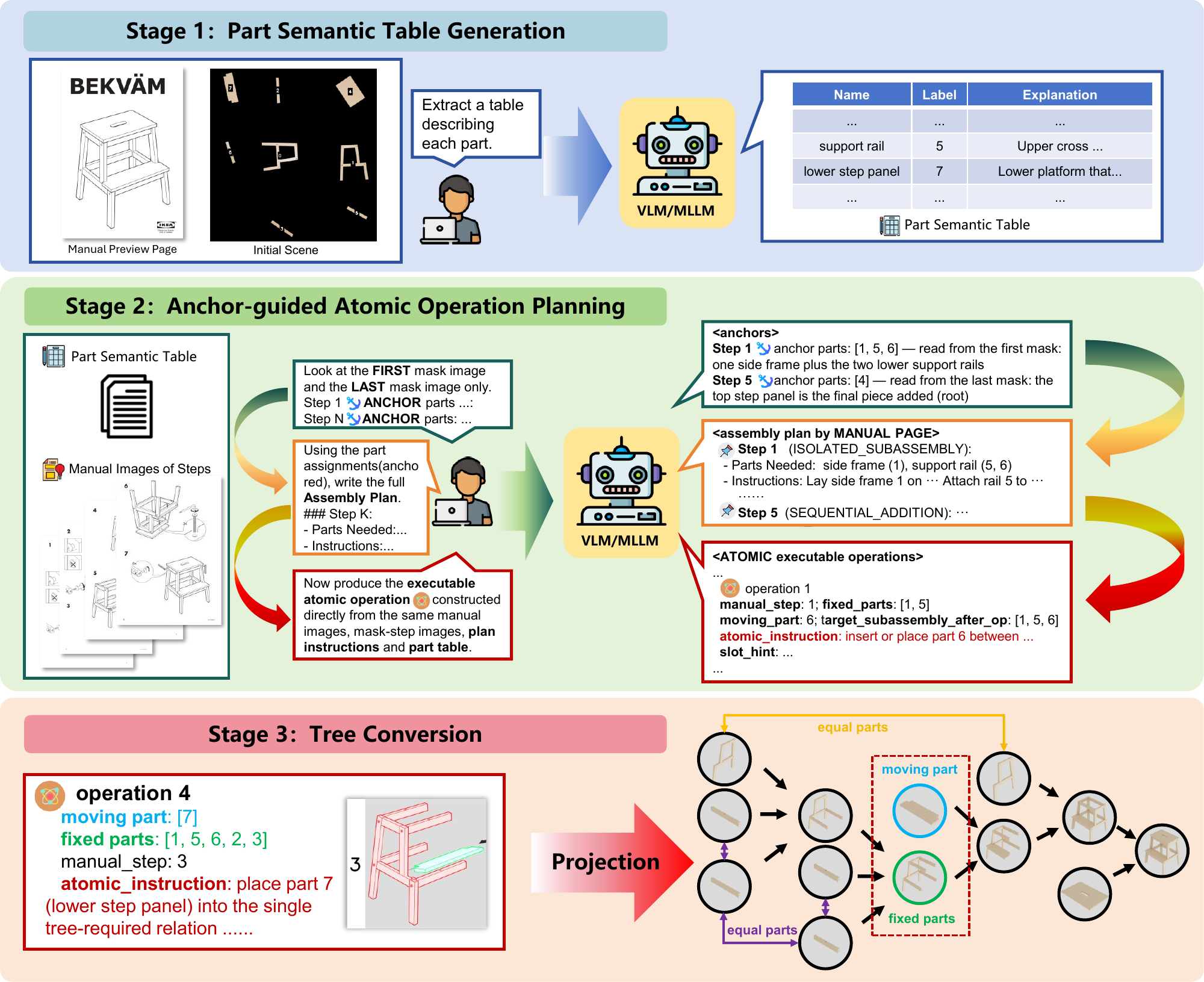

Paper figure showing part grounding, anchor-guided planning, tree conversion, and the assembly-operation interface. — Part naming and semantic enrichment create a shared part table. A single anchor-guided planning request reads the numbered scene and ordered step masks; a parser or text-only conversion call then produces the assembly hierarchy.

Refine the Predicted After-State

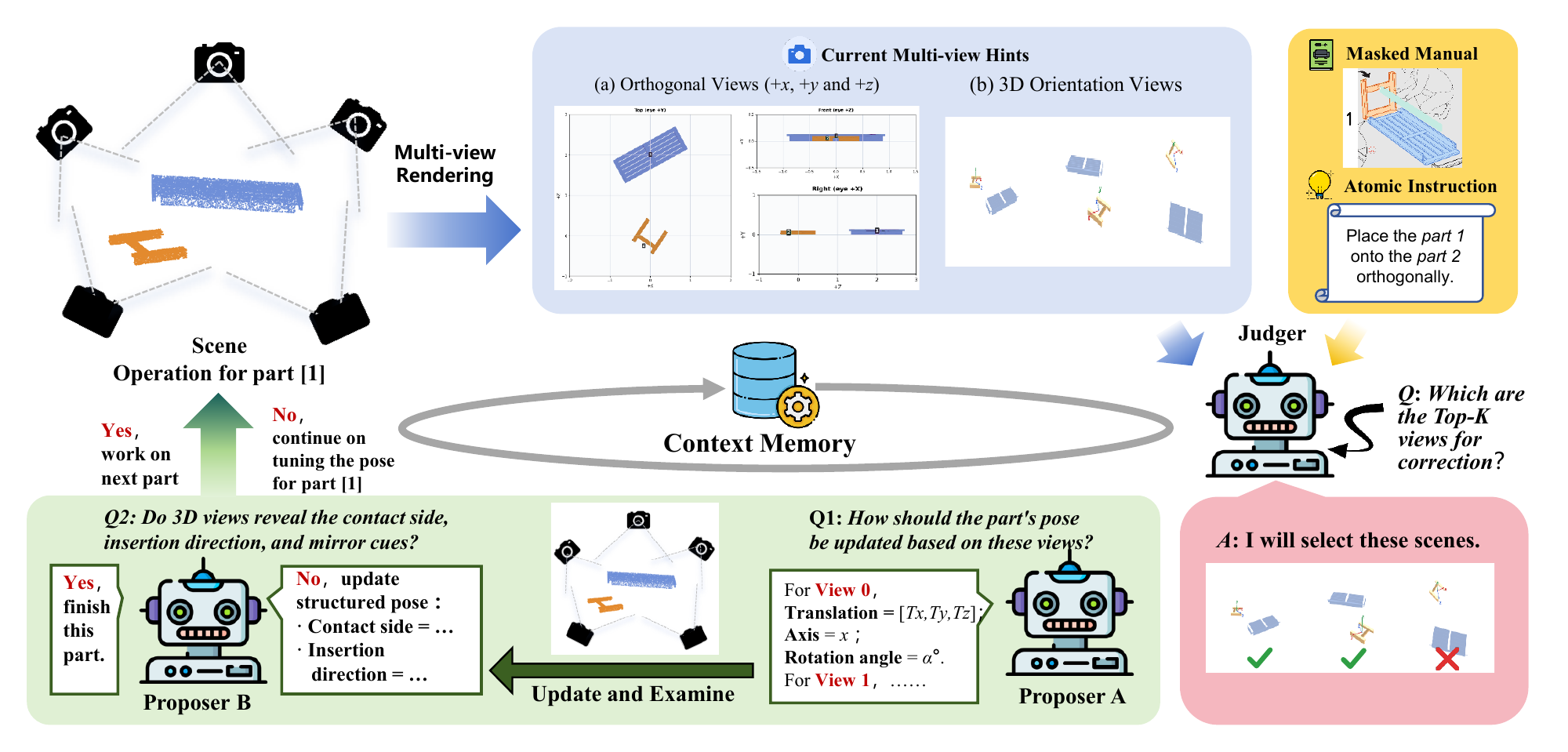

Paper diagram of iterative 6D pose proposals, rendered after-states, selection, and diagnostic feedback. — For a correct current operation, the historical pose loop proposes an incremental SE(3) update, renders the resulting state, selects a candidate, and feeds the saved diagnosis into the next round. Ground-truth target poses and target-state images are not model inputs.

A Closer Look at the Inputs

Five illustrative inputs from Bench/applaro, matching the files consumed by the released planner.

Four scattered bench parts labeled 0, 1, 2 and 3

Experimental Results

Structure recovery, pose estimation, release validation, and additional analyses. Values below follow the paper.

Table 1 · Assembly-structure recovery (%)
Method	Precision ↑	Recall ↑	F1 ↑	Tree EM ↑
SingleStep	10.78	10.78	10.78	10.78
GeoCluster	13.37	13.36	13.15	3.92
Manual2Skill	37.45	36.41	36.83	27.45
Manual2Skill++	—	—	38.58	28.24
Ours w/o Anchors	57.39	55.90	56.20	45.10
AssemState	62.34	62.46	62.80	53.92

Manuscript-reported scores; full historical tree predictions are unavailable. The reported F1 (62.80) exceeds the mean of P/R (62.40), which requires clarification of the original aggregation. The release preserves the paper values without claiming to have reproduced them.

Table 2(a) · Correct-operation-conditioned 6D pose estimation
Backbone / setting	Judge acc. (%) ↑	RMSE_t ↓	GD (°) ↓	CD / Median CD ↓
GPT-5 · Text-only	0.0	2.4322	123.02	15.7263 / 10.1914
GPT-5 · Open6DOR-style	0.0	1.8747	120.84	5.4111 / 0.9391
GPT-5 · Self-check, 3 rounds	5.3	1.8898	121.52	1.7744 / 0.8112
Haiku 4.5 · Text-only	0.8	2.4315	125.61	18.7281 / 13.8936
Haiku 4.5 · Open6DOR-style	4.5	1.8887	123.20	10.8826 / 3.2725
Haiku 4.5 · Self-check, 3 rounds	11.5	1.9760	123.69	10.6708 / 1.8770

55 correct-tree products; 243 independent operations per setting. PA@0.01 = 0.0000 for every setting. Judge acceptance is a model-based diagnostic, not independently verified pose correctness. Backbone labels follow the main paper; the preserved appendix trace records gpt-5.2.

Table 2(b) · Simulation-based release validation
Backbone / setting	Stable (%) ↑	Mean drift ↓	Mean Z drop ↓
GPT-5 · Text-only	16.5	0.4249	0.1696
GPT-5 · Open6DOR-style	37.0	0.2463	0.1058
GPT-5 · Self-check, 3 rounds	39.5	0.1754	0.0632
Haiku 4.5 · Text-only	12.3	0.4254	0.0859
Haiku 4.5 · Open6DOR-style	33.7	0.3266	0.1328
Haiku 4.5 · Self-check, 3 rounds	33.7	0.3109	0.1262

Historical AABB release diagnostic: fixed parts are static boxes and only the moving box is dynamic. Stability requires drift < 0.05, Z drop < 0.05, and rotation drift < 12°. This tests coarse support, not fastening or connector-level assembly.

Table 3 · Pose ablation
Setting	Judge accept. ↑	CD ↓	Release stability ↑
Open6DOR-style	0/243	5.4111	90/243 = 37.0%
+ Multi-view structured init.	1/243	5.3113	109/243 = 44.9%
+ Contact-aware self-check	13/243	1.7744	96/243 = 39.5%

The paper presents cumulative components. Archive auditing finds only 160/243 identical operation contexts between GPT structured and self-check, versus 243/243 for multi-view and self-check; this limits a strictly controlled interpretation. Release stability is not monotonically improved.

Representative Traces and Inference Settings

Table A1 · Retained Stage-1 semantic table
ID	Name	Functional explanation
0	long side rail	Forms the long side of the bed frame and supports the slatted bed base.
1	slatted bed base	Provides the flexible sleeping surface that supports the mattress.
2	headboard/end frame	Closes one end of the bed and provides the headboard structure.
3	footboard/end frame	Closes the opposite end of the bed and helps stabilize the frame.

This retained manual example is a bed, separate from the Bench/applaro inputs above. The available example ends at Stage 2; its final tree was not retained.

Table A2 · Bench/applaro operation 0: three-round failure trace
Round	Incoming feedback	Incremental update	Saved after-state diagnosis
0	None	Δt = [0, 0, +1.50]; identity rotation	Rejected: wrong_side; contact and orientation incorrect. Move to a short end and rotate upright.
1	Previous wrong_side diagnosis and residual direction	Δt = [0, 0, −0.45]; +90° about world Y	Rejected: wrong_side persists; separated from panel end and not upright/perpendicular.
2	Updated wrong_side diagnosis and contact/orientation hints	Δt = [0, 0, +0.40]; +90° about world X	Rejected: wrong_side; still along the long side, not seated flush on an end face.

Moving part 2 (side frame), fixed part 1 (seat panel). All three rounds remain rejected. Ground-truth rescue constructs later context only; it is not a successful predicted placement.

Table A3 · Client settings for the preserved trace
Role	Model ID	Max image side	Reasoning effort
Proposer	gpt-5.2	768	low
Selector	gpt-5.2	512	minimal
Judge	gpt-5.2	512	minimal

Completion-token caps: proposer 2048; selector/judge 512. Image detail: high. One candidate per round, at most three rounds. These settings describe the retained trace, not every aggregate experiment.

Additional Experimental Analyses

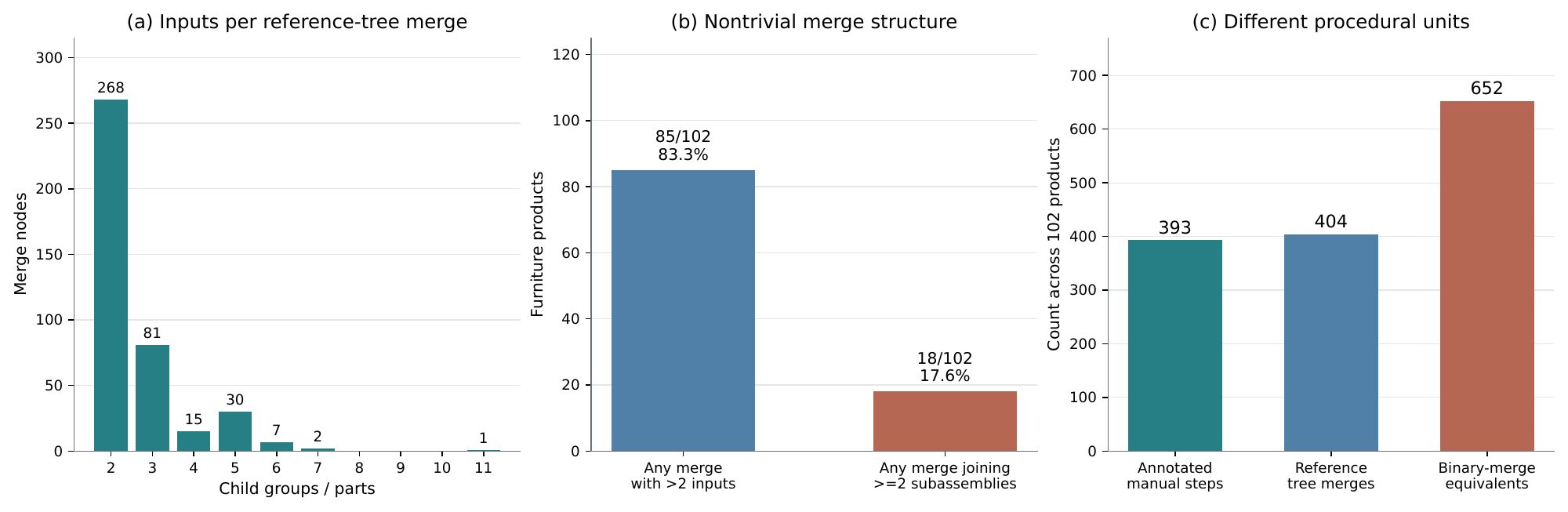

Reference-tree branching and procedural unit counts across 102 products. — 85/102 products include multiway merges; 18/102 include merges of multiple subassemblies. There are 393 manual steps, 404 reference-tree merges, and 652 binary-merge equivalents. Binary equivalents are combinatorial counts, not verified robot actions.

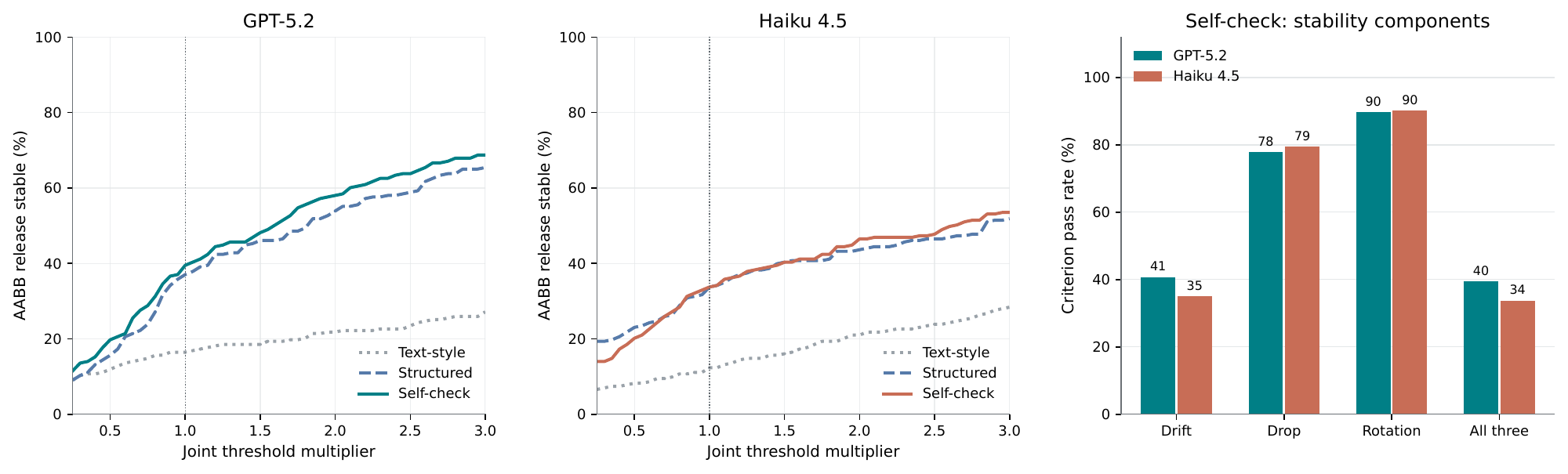

Sensitivity of release stability to jointly scaled drift, drop, and rotation thresholds. — Post-hoc sensitivity analysis of stored release records. Thresholds are jointly scaled around the reported operating point; no new physical simulation is claimed.

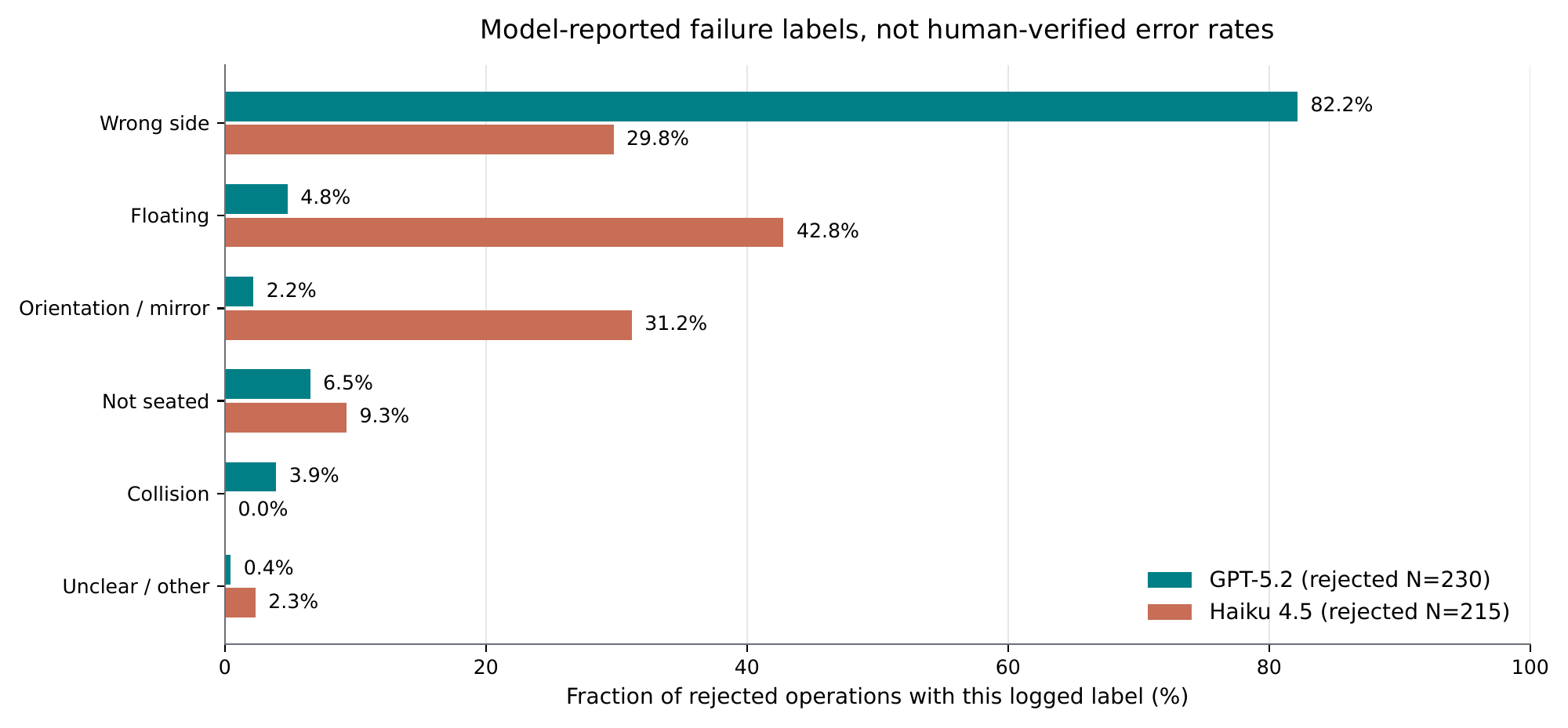

Model-reported error labels among rejected GPT and Haiku self-check operations. — Saved diagnostic labels for rejected operations: GPT-5.2 N = 230; Haiku 4.5 N = 215. Labels come from the model-based judge and are not human-verified error frequencies.

Where Spatial Reasoning Still Fails

A plausible coarse placement can still choose the wrong contact side, mirror orientation, or seating relation.

Paper examples of collision, floating, mirror, incomplete seating, and wrong-side placement failures. — Representative final self-check failures from the paper. After-state feedback improves selected diagnostics, but contact-accurate target-free assembly remains unresolved.

BibTeX

@misc{qi2026assemstate,
  title={AssemState: Manual and Physical-State-Guided Reasoning for Zero-shot Furniture Assembly},
  author={Zhiyuan Qi and Jierui Li and Yifan Shen and Cheng Qian and Jiateng Liu},
  year={2026},
  eprint={2610.08446},
  archivePrefix={arXiv},
  primaryClass={cs.AI},
  url={https://arxiv.org/abs/2610.08446}
}
